Junction Control
Surface-mounted traffic islands for pedestrian protection, chicanes, junction channelisation and bespoke layouts.
Product Overview
Pre-formed rubber islands supplied in one or two pieces for quick installation. Solid rubber construction with universal sign plate and underside channelling for drainage and cable access. One-piece islands install in under 30 minutes; two-piece islands in under 40 minutes.
Capabilities
Rapid
One-piece islands installed in under 30 minutes. Two-piece in under 40 minutes. Minimal lane closure time.
Versatile
Used for chicane arrangements, junction channelisation, satellite islands and pedestrian protection features.
Extendable
All islands can be extended length and width-ways with extension pieces to suit any specification or bespoke layout.
Technical Data
All islands are 130mm height, manufactured from 100% recycled tyre rubber with universal sign plate and underside channelling.
Installed in under 30 minutes

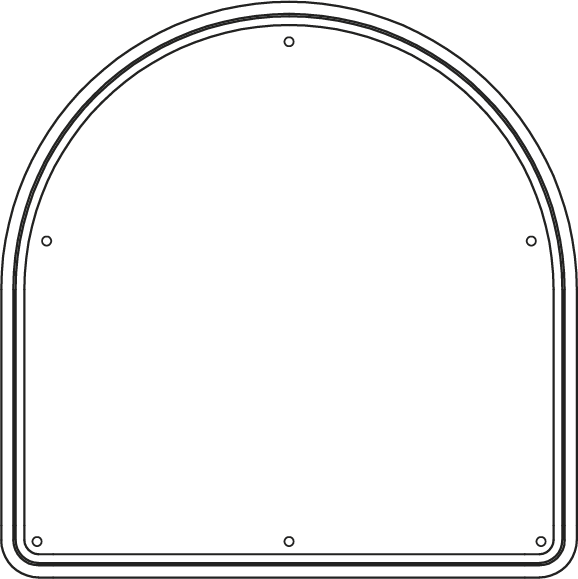

DI-1000
1000 × 1000 mm
150 kg

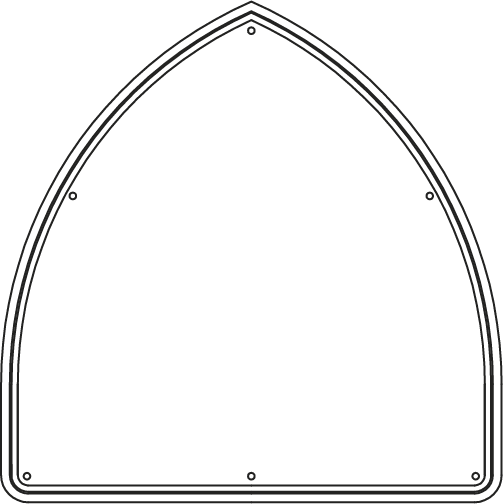

DI-1200
1200 × 1200 mm
180 kg

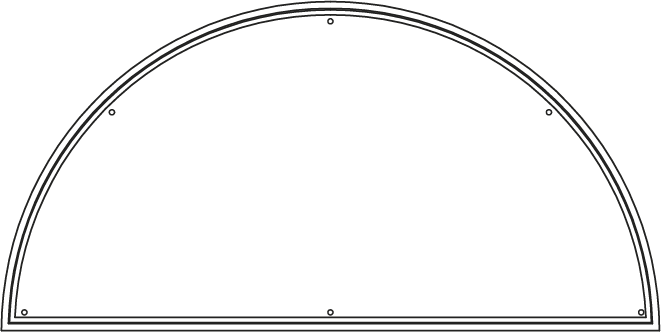

DI-2000 S
1000 × 2000 mm
230 kg
TI-2000
2032 × 1000 mm
280 kg
Block paver surface for sensitive environments

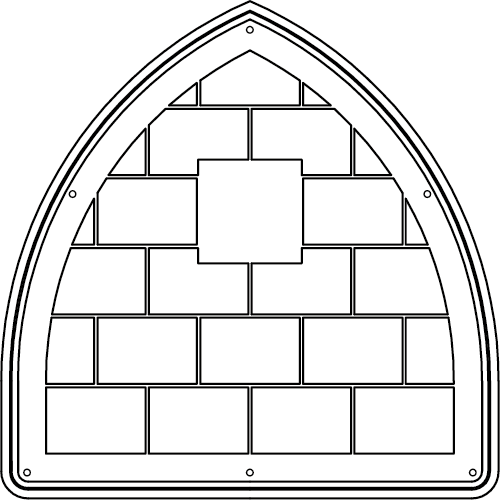

DI-1200H
1200 × 1200 mm
180 kg
Larger units supplied in two halves — installed in under 40 minutes

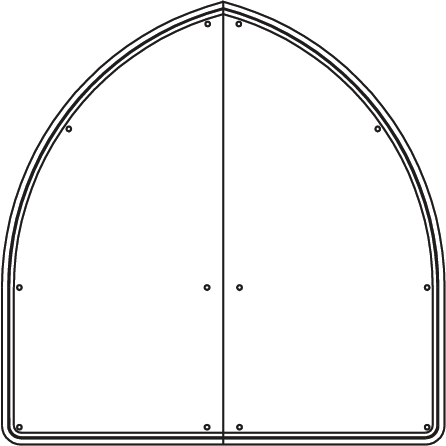

DI-1500
1500 × 1500 mm
150 kg

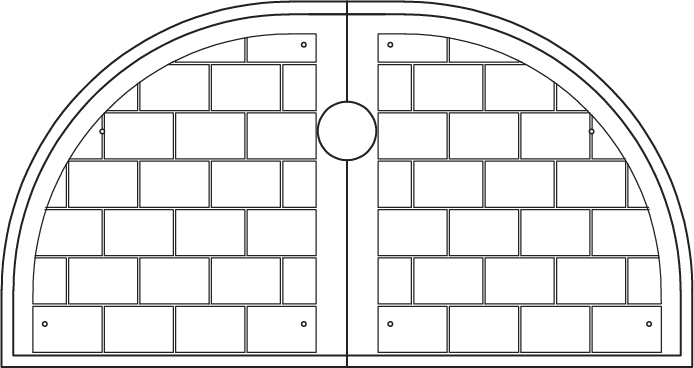

DI-2400S
2400 × 1270 mm
190 kg

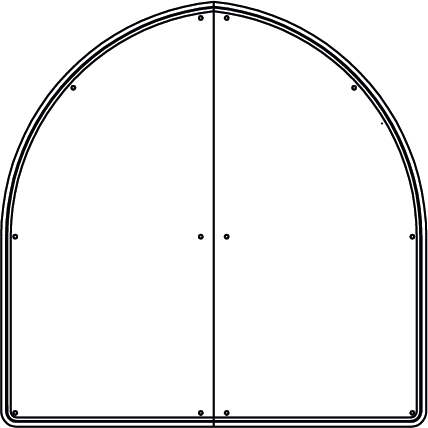

DI-1800
1800 × 1800 mm
210 kg

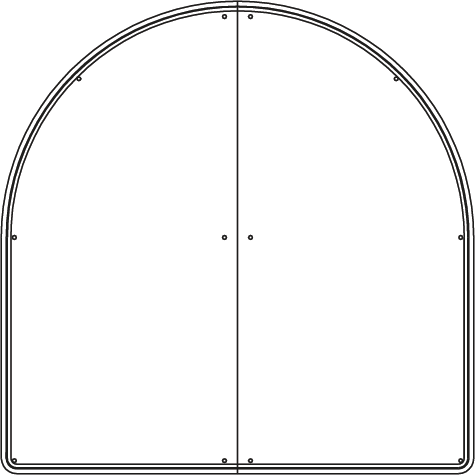

DI-2000
2000 × 2000 mm
260 kg
Applications
Lane channelisation
Speed-reducing alignments
Refuge and protection
Central island features
Traffic flow management
Project Case Studies
Common Questions
One-piece islands (up to 2m) install in under 30 minutes. Two-piece islands (up to 2.4m) install in under 40 minutes. No excavation is required.
Yes. All islands include a universal sign plate as standard. They are compatible with keep-left signs, bollards, illuminated posts and lighting columns. A cavity for an integral battery box is also available.
All units feature underside channelling that allows surface water and cables to pass beneath the island without pooling.
Yes. The DI-1200H is available with a heritage block paver surface pattern for installations in conservation areas or sensitive streetscapes.
Yes. All island types can be extended in both length and width using extension pieces, allowing bespoke geometry for chicanes, junction channelisation or unusual site layouts.
One-piece islands range from 150kg (DI-1000) to 280kg (TI-2000). Two-piece islands range from 150kg (DI-1500) to 260kg (DI-2000).
We can advise on chicanes, junction channelisation, pedestrian protection and bespoke island geometry.
