Safe Crossing
Surface-mounted pedestrian refuge islands for safer crossings where a full controlled crossing is not justified or cannot be delivered quickly.
Product Overview

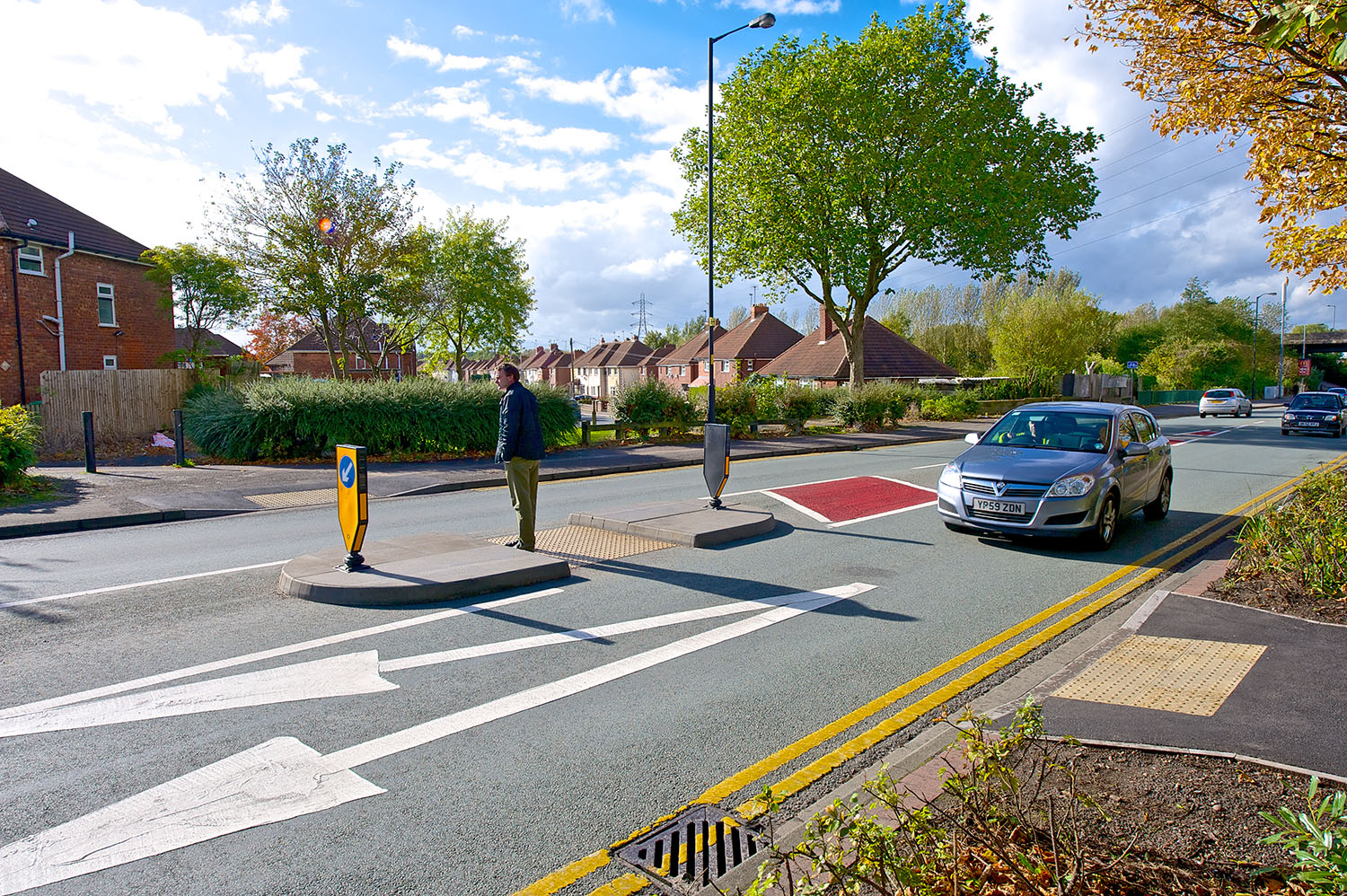

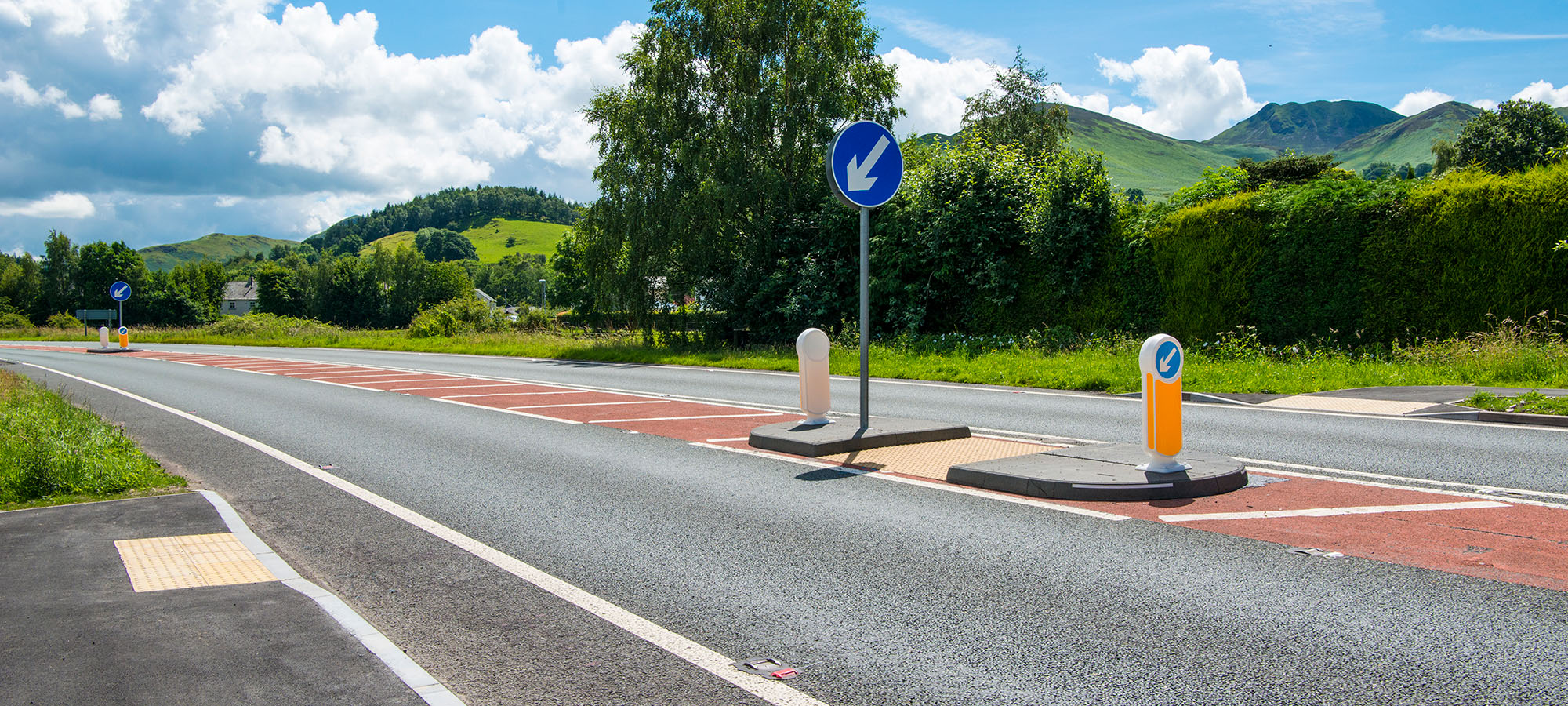

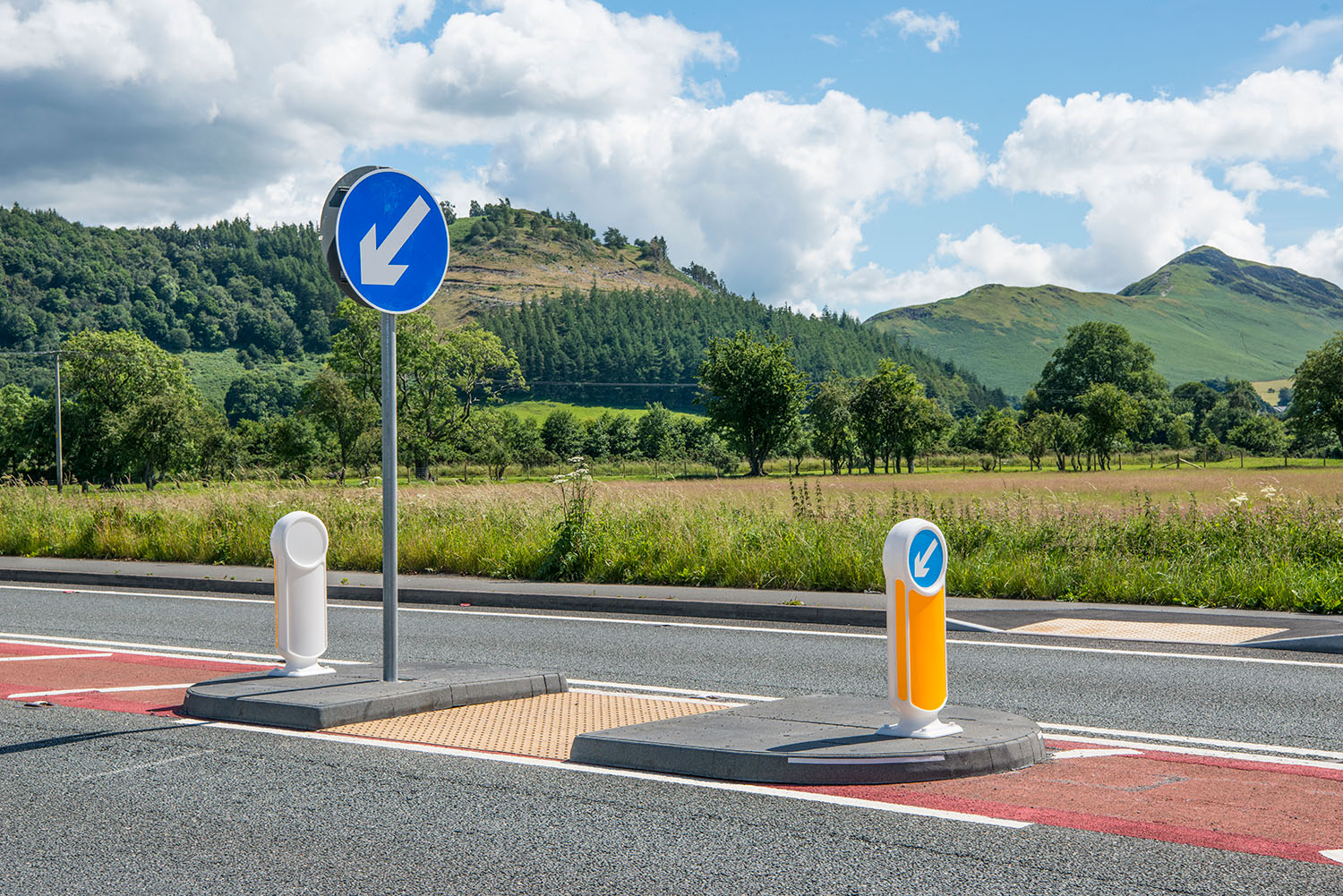

Pedestrian refuges provide a protected midpoint on roads too wide to cross safely in one phase. Solid rubber construction in one or two pieces, installed in half a day without excavation. Surface-mounted tactile paving integration for accessibility, with optional cable-less solar-powered beacon.
Capabilities
Accessible
Surface-mounted tactile paving for visual impairment accessibility, integrated directly into the refuge island.
Rapid
Complete pedestrian refuge installed in half a day with no excavation. Minimal disruption to live carriageway.
Autonomous
Optional cable-less solar-powered beacon eliminates the need for mains connection and costly ducting work.
Technical Data
All refuge islands are 130mm height, manufactured from 100% recycled tyre rubber. Surface-mounted tactile paving and optional solar beacon available for all sizes.
Installed in under 30 minutes

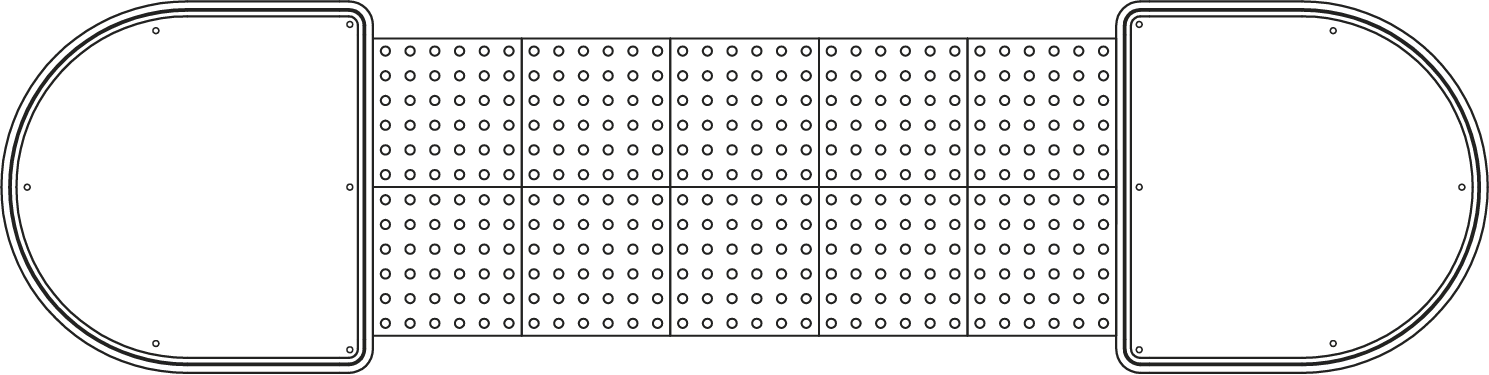

RI-1000
1000 × 1000 mm
150 kg

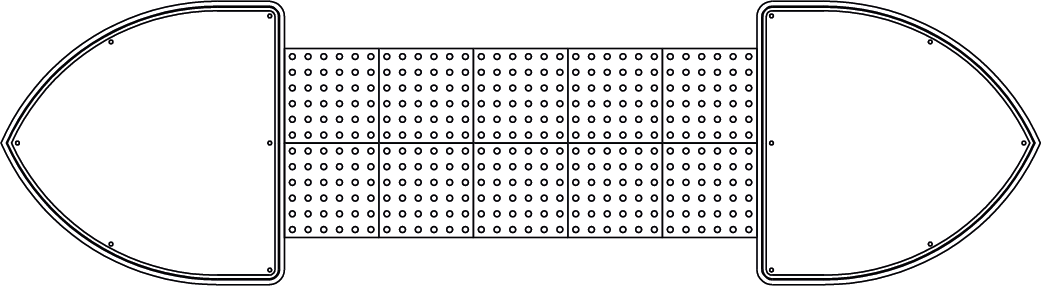

RI-1200
1200 × 1200 mm
180 kg

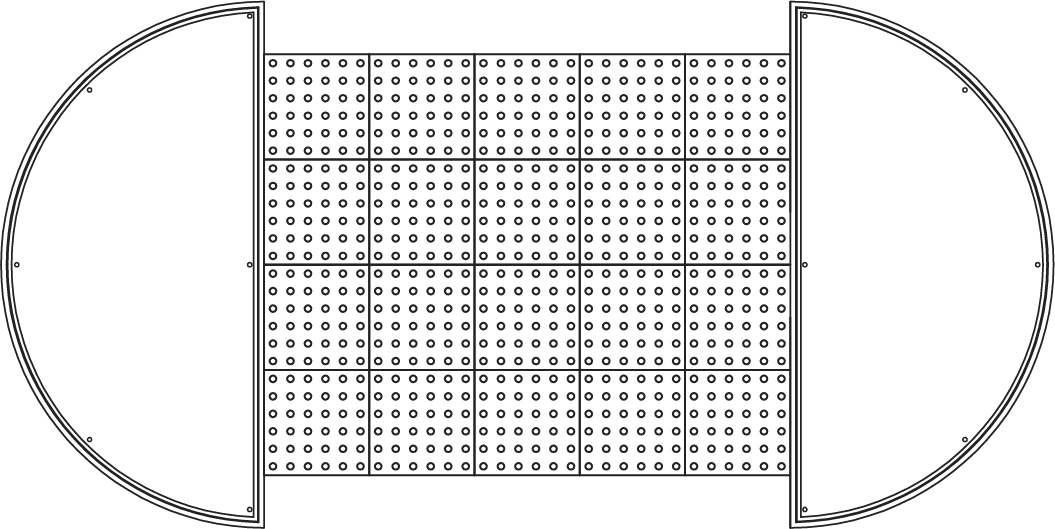

RI-2000S
1000 × 2000 mm
230 kg

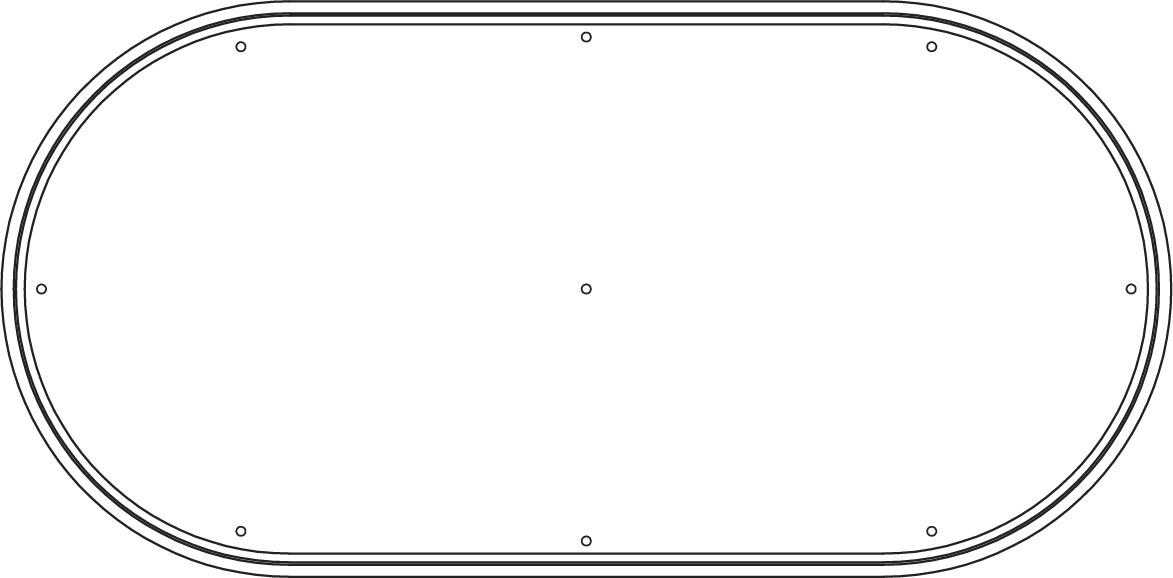

TI-2000
2032 × 1000 mm
280 kg

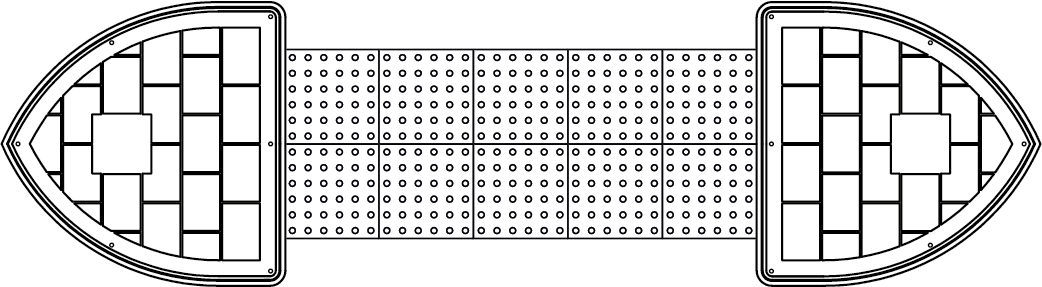

Block paver surface for sensitive environments
RI-1200H
1200 × 1200 mm
180 kg
Larger units supplied in two halves — installed in under 40 minutes

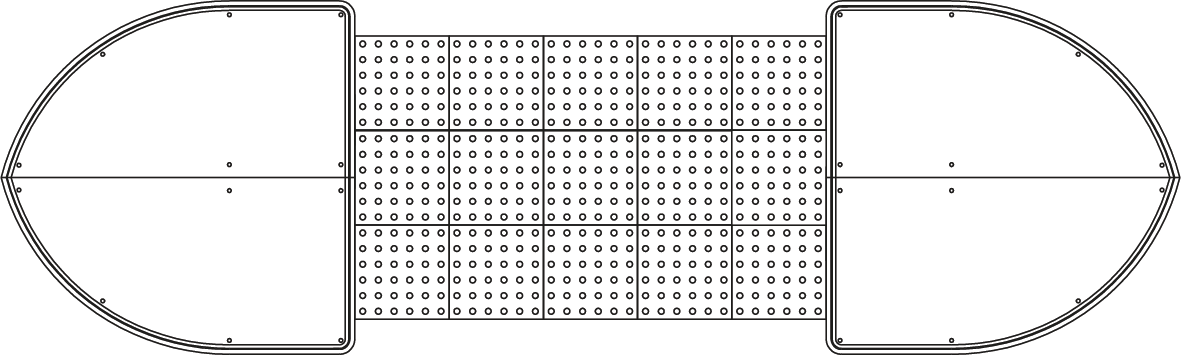

RI-1500
1500 × 1500 mm
150 kg

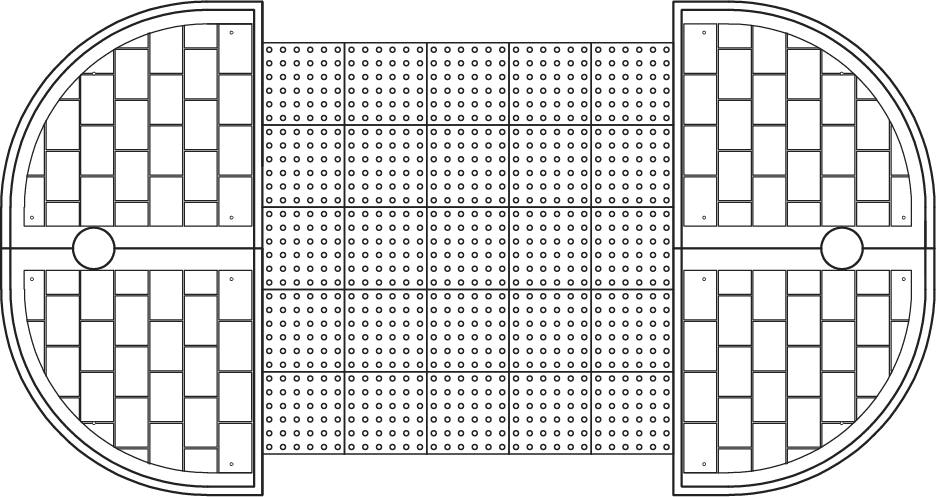

RI-2400S
2400 × 1270 mm
190 kg

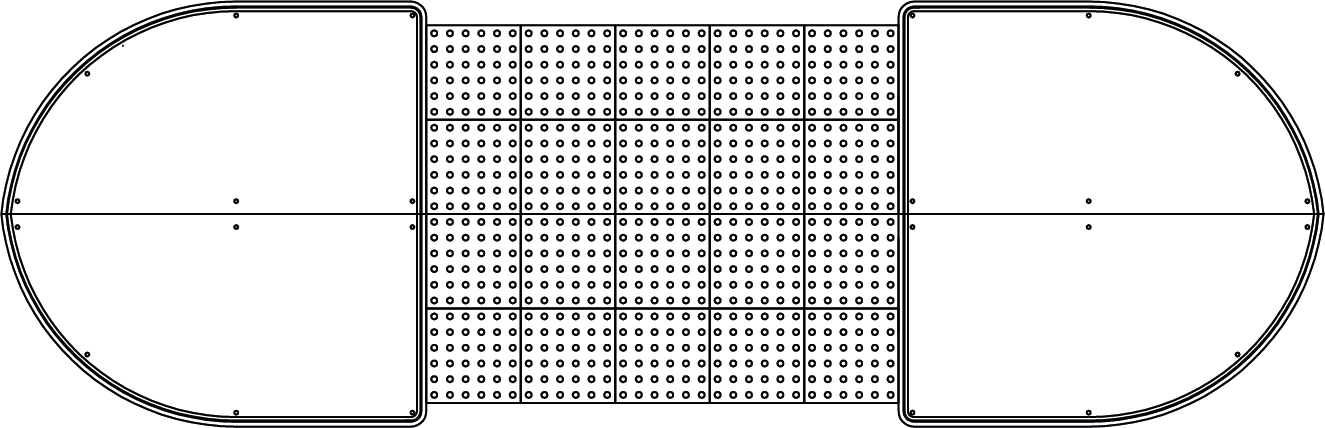

RI-1800
1800 × 1800 mm
210 kg

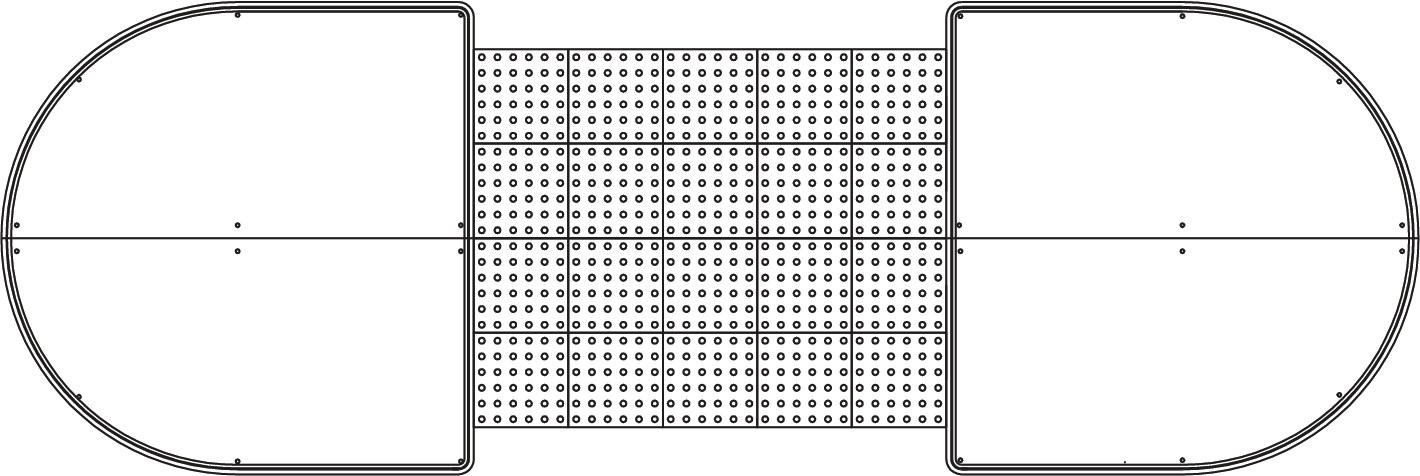

RI-2000
2000 × 2000 mm
260 kg
Pedestrian accessibility components
Tactile Paving
400 × 400 mm per tile
Pack of 10 — Buff
Tactile Adhesive
Covers 10 tactile tiles
EP Adhesive
Applications
Safer routes for students
Busy shopping areas
Patient and visitor safety
Transport interchange crossings
Community crossing points
Project Case Studies
Common Questions
A complete refuge island can be installed in half a day with no excavation, including tactile paving if required.
Tactile paving tiles (400 × 400mm, buff) are available as a separate accessory and can be surface-mounted directly onto the refuge island using the supplied adhesive.
Yes. An optional cable-less solar-powered beacon with refuge post eliminates the need for mains connection, ducting or electrical work.
A refuge provides a protected midpoint for pedestrians crossing in two stages, without vertical speed deflection. A raised table is more appropriate where both a crossing point and speed reduction are needed.
Yes. Pedestrian refuges use the same base island units (RI-1000 through RI-2000) with the addition of tactile paving integration and optional beacon mounting.
We can advise on whether a refuge, island or raised crossing is the right solution for your site.
